MUD ENGINEERING EQUIPMENTS

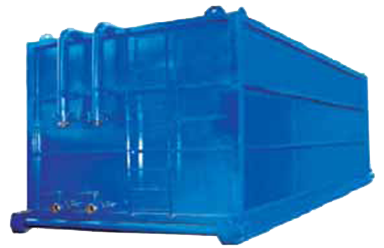

MUD MIXING & BRINE TANKS

Technical Description
  • Application : For Mud & Brine Mixing
  • Available : With Internal Chamber
  • Capacity : Up to 500 BBL
mud-mixing

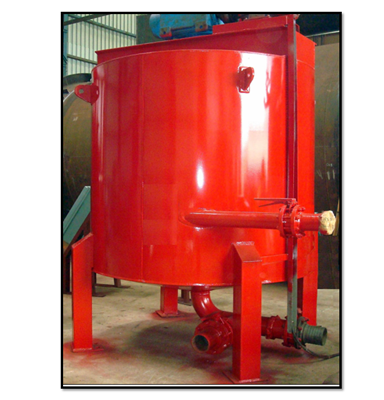

SLURRY TUBS

Technical Description

Agitator provided for mixing purpose. Electrical motor assembly provided on top. Less space required. Transfer hose provided for transfer of slurry.

SLURRY TUBS

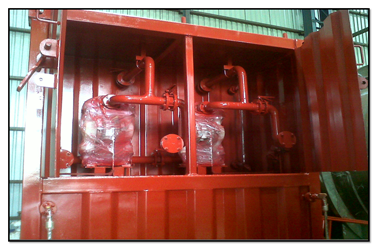

CHEMICAL MIXING TANK

HIGH PRESSURE

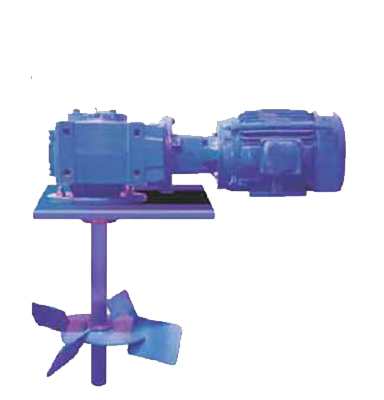

MUD AGITATOR

Technical Description

Mud Agitator is used for maintaining a drilling / work over fluid of uniform consistency throughout the surface mud system. Featuring a "C" face, Sparklet Agitators are coupled to a rugged oilfield gearbox, which eliminates misalignment and troublesome couplings

Models:
  • Available in Horizontal & Vertical
  • Range: 5HP to 30 HP
MUD AGITATOR

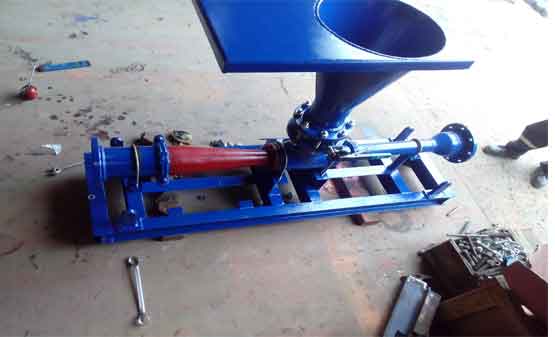

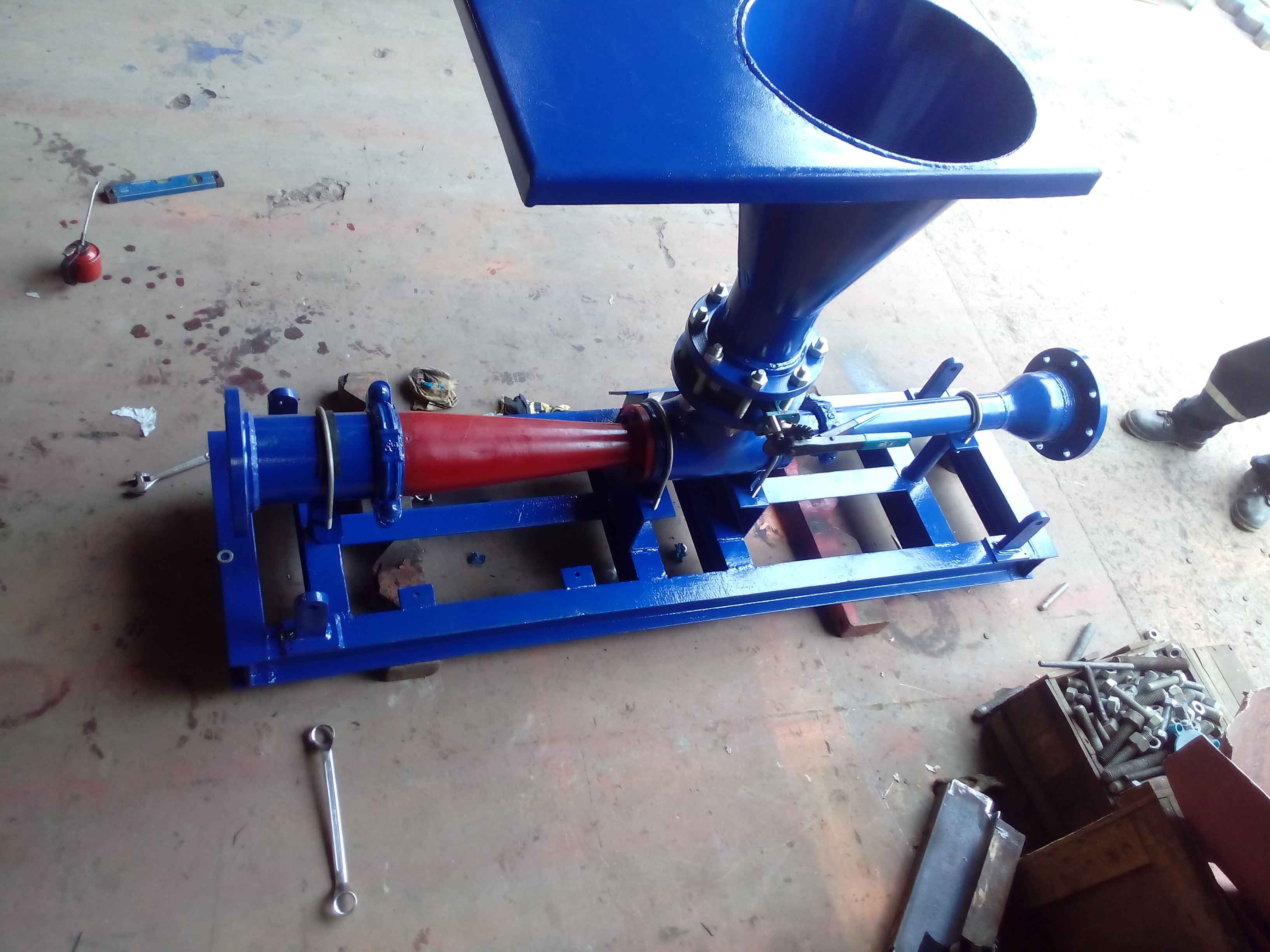

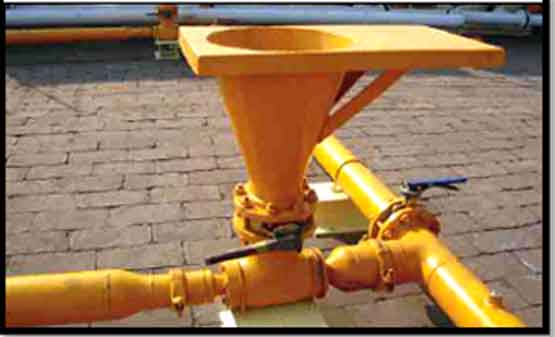

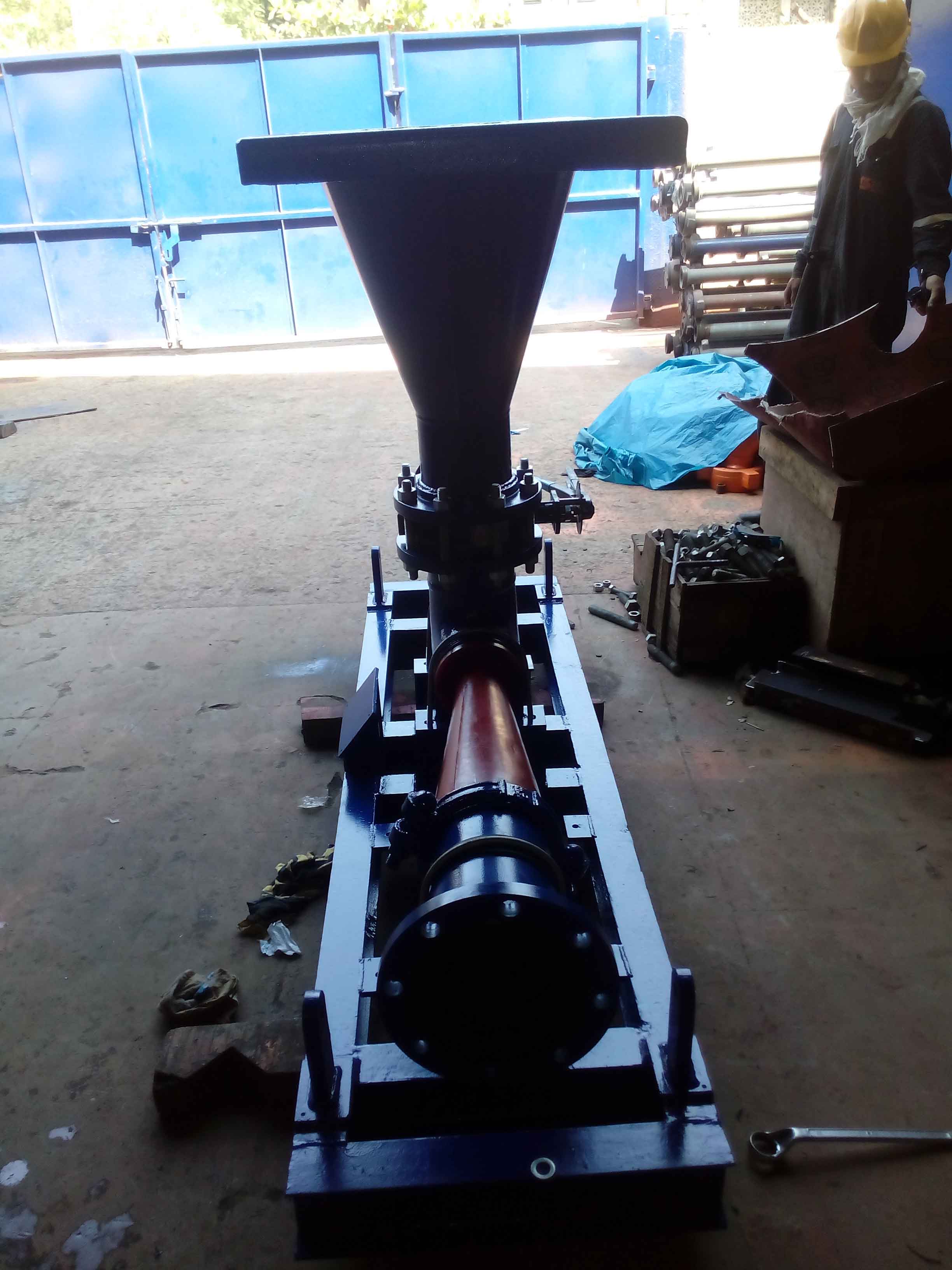

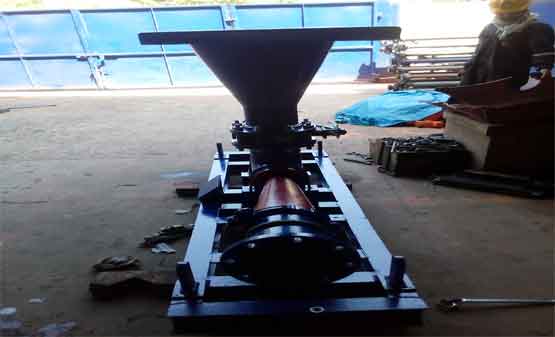

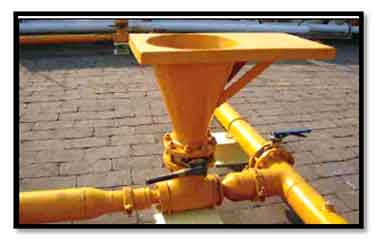

MUD HOPPER

Technical Description

The Hopper is used with high volume Centrifugal Pumps, normally on offshore rigs and large rigs. A butterfly valve is incorporated in the neck of the hopper to adjust flow and to close off the hopper after use.

The hopper comes complete with nozzle, venturi, funnel, sack table, butterfly valve all mounted on a base. This standard 2” nozzle handles 8 sacks/minute of barite and 4 sacks/minute gel. 3” male NPT inlet by 6” weld end outlet.

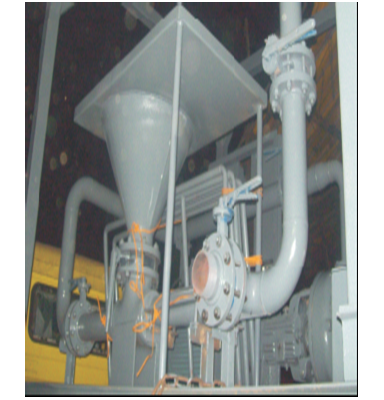

JET SHEARING UNIT ( Model SE 1002005 )

Technical Description
  • Unit consists of an eductor coupled to the yoke of a model 1002 JS
  • The educator has removable and replaceable nozzle amuser inserts and a 0-30 Hg vacuum gauge.
  • The Jet Shear consists of a 10" mixing chamber with two removable nozzle plates, tow nozzle plate covers, Victaulic clamps.
  • Unit is skid mounted with a stainless steel chemical hopper with main pump line bypass and table
  • All carbon steel surfaces are sandblasted and epoxy coated with an urethane upper coat
  • Intel : 4" NPT threaded nipple with 0-100 psi pressure gauge
  • Outlet : 6" Victaulic groove nipple.
jet-sharing

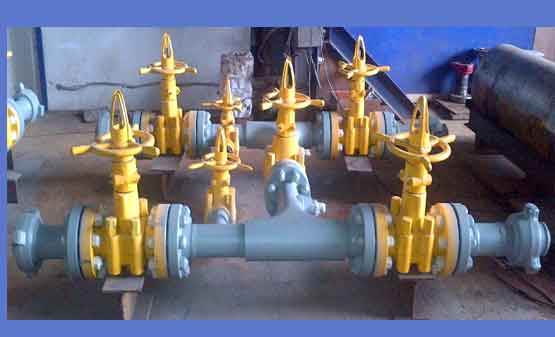

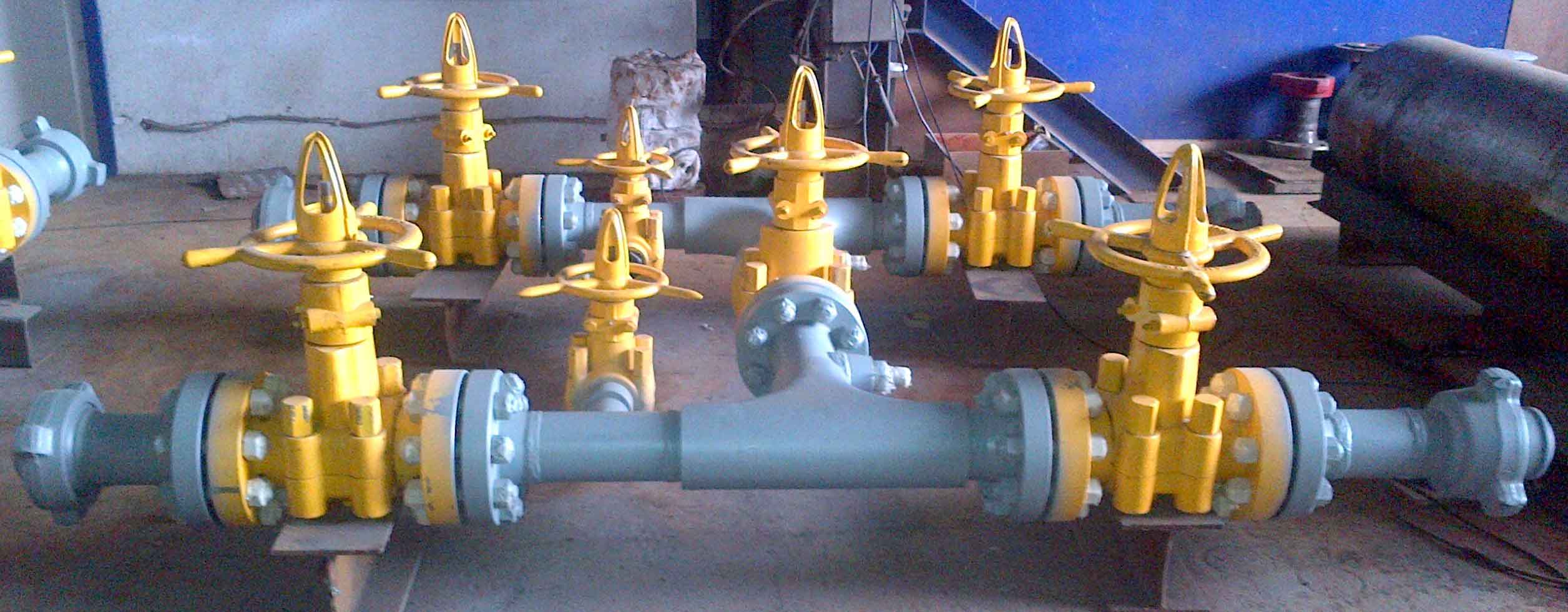

STAND PIPE MANIFOLDS

Mud Standpipe Manifolds designed to suit all types of drilling installations like semis, drillships, fixed platforms, jackups and more. They are built to industry rules and regulations and customized to the client’s specification. The Manifold can be fitted on a complete skid with support framework. Valves, instruments, wiring, and tubing are designed to suit the client’s available space and other interface requirements.
